   Product Details
Screw air compressor (60)

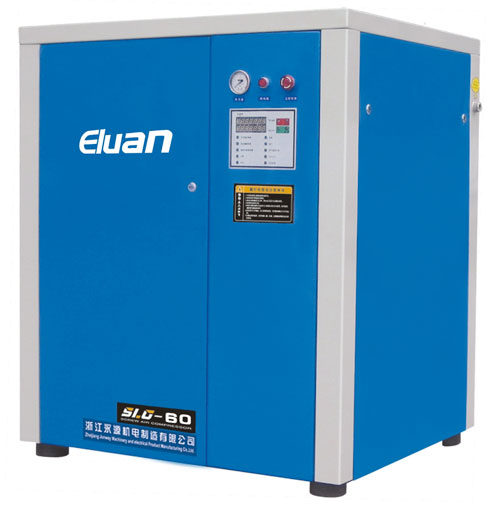

Screw air compressor (60)
Product Group: Screw air compressor
Product Description:

1.Germanic technology Adopting Germany Rotorcomp technology a compact original screw machine and the related pieces

2.Reliability and durable Rotator has unique appearance curve, and even turn more smoothly Let rotator wear to a minimum, solid underframe and the crankcase, all of them have been assigned to deal with the surface tension automatically adjust and just performance V-belt drive Sealed efficient electrical crankcase, IP54 protection, insulation Class F Balancing the rotational components that suitable to the smooth and continuous operation

3.Easy protection External oil separator filter replacement easier Control components more easily The doors are easy to open, more space for maintenance Automatic control and safety monitoring

4.Easy installations Compact machinery not hold too much space With shock mounts, the installation does not require specific strength on the ground Equipped with heavy boxes to facilitate the protection of power line easy link power

5.Excellent performances Strong cooling fan improve compressor inlet pressure and increase export flows Output the highest pressure to 15bar Low compressing air temperature Sophisticated filter separator most Export Oil isolation, low content to 2-4ppm

Model Capacity(m3/min) Motor(KW) Noise LeveldB(A) L*W*H(mm) Weight(kg)
0.7MPa 1.0MPa 1.25MPa
LG15 1.76 1.50 1.16 11.0 65 660*980*995 330
LG20 2.24 1.96 1.51 15.0 68 660*980*995 340
LG25 2.91 2.62 2.20 18.5 68 660*980*995 362
LG30 3.46 3.10 2.66 22.0 70 790*1210*1220 445
LG40 4.38 4.01 3.52 30.0 70 790*1210*1220 490
LG50 6.15 5.24 4.56 37.0 72 1100*1500*1580 750
LG60 7.25 6.51 5.55 45.0 72 1100*1500*1580 850
LG75 9.30 7.96 6.70 55.0 75 1100*1500*1580 950
